Description

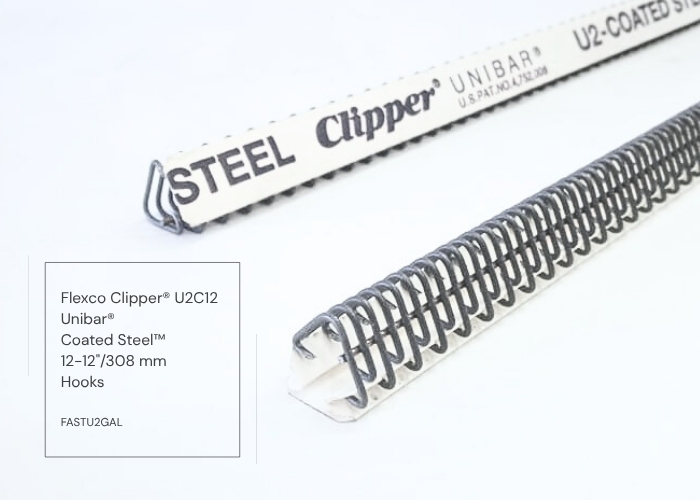

Clipper® Size U2-U7 Unibar® Hooks



Ideal for applications with a minimum pulley diameter of 2” to 7” (51 mm to 175 mm) and ranging in thickness from 5/32” to 25/64” (4.0 mm to 10.0 mm).



Fastener Details

  • Design: Individual Clipper Hooks welded to a common bar.
  • Belt Thickness: 5/32” to 25/64” (4.0 mm to 10.0 mm)
  • Minimum Pulley Diameter: 2” to 7” (51 mm to 175 mm)
  • Approximate Hinge Pin Diameter: 0.093-0.156 (2.4 mm to 4.0 mm)
  • Wire Diameter: 0.054” (1.4 mm)
  • Metal Selection: 430 Stainless Steel, High Tensile, Coated Steel, 316 Stainless Steel
  • Installation Method: Machine applied



Ordering Number:

FASTENER-U2-GAL-300MM/12STRIPS
